Fully Integrated, Scalable, Cell Therapy Manufacturing Platform

VIEW CELL SHUTTLE DATA
HIGH THROUGHPUT

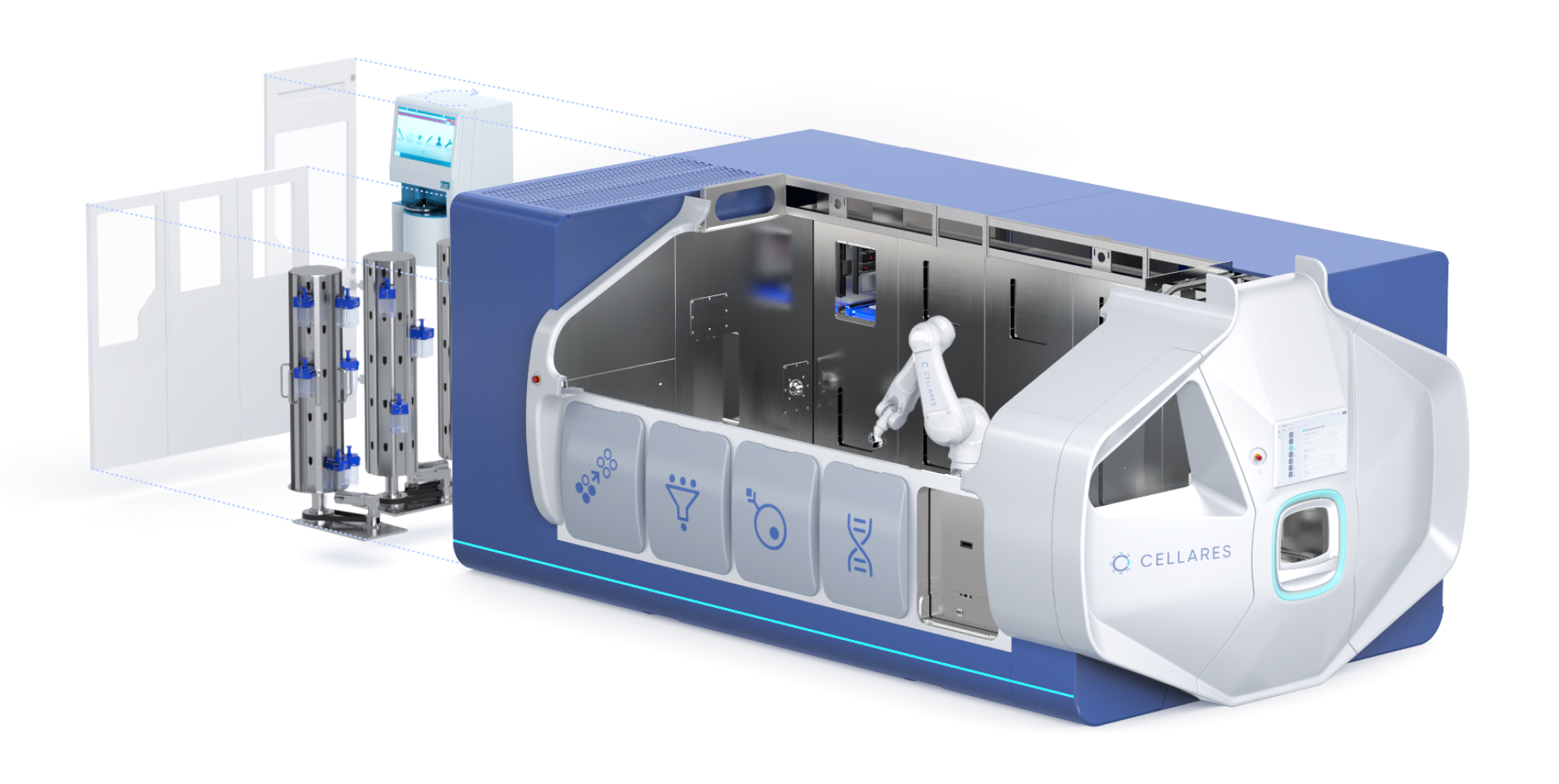

Purpose-built Technology Powers the First Integrated Development & Manufacturing Organization (IDMO)

Reagent Vault System (RVS)

  • Capacity for up to 200 automation-friendly reagent bottles (SLTDs)
  • SLTDs come in three volumes: 10mL, 50mL, 1000mL
  • Reagent agnostic (all vendors supported)
  • Refrigerated at 4°C
  • Just in time lane for time critical reagent delivery
  • Integrated software for reagent scheduling, inventory and supply chain management
  • All SLTDs undergo ionized hydrogen peroxide decontamination cycles

Reagent Vault System (RVS)

  • Capacity for up to 200 automation-friendly reagent bottles (SLTDs)
  • SLTDs come in three volumes: 10mL, 50mL, 1000mL
  • Reagent agnostic (all vendors supported)
  • Refrigerated at 4°C
  • Just in time lane for time critical reagent delivery
  • Integrated software for reagent scheduling, inventory and supply chain management
  • All SLTDs undergo ionized hydrogen peroxide decontamination cycles

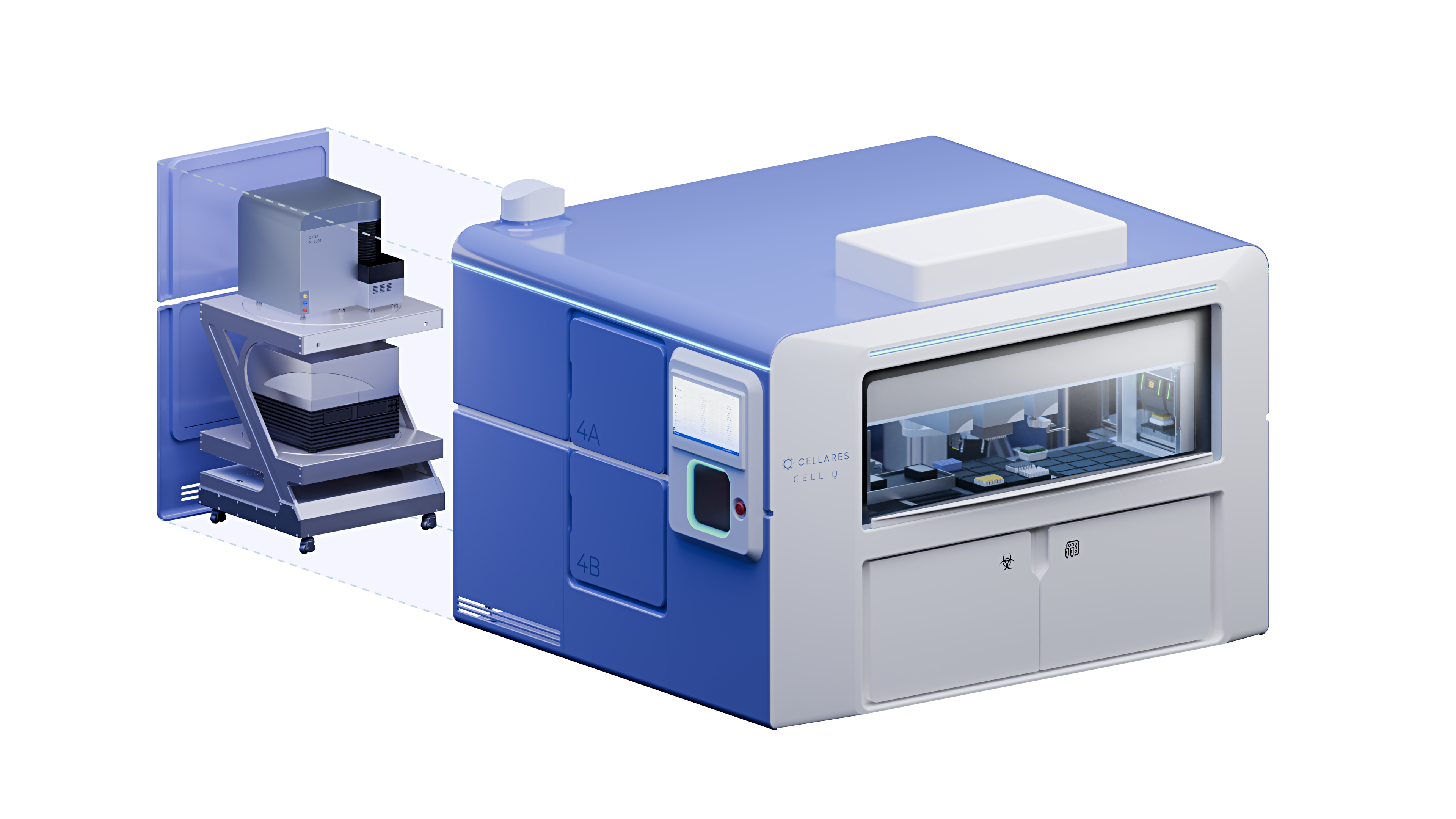

QC - Automated Sampling & Online Analysis

  • Automated sample collection
  • Online analysis: integrated cell culture analyzer supports 16 assays including cell count and viability
  • Offline analysis: sample containers can be collected from the Cell Shuttle
  • Real-time process monitoring
  • Auto-generated electronic batch records

QC - Automated Sampling & Online Analysis

  • Automated sample collection
  • Online analysis: integrated cell culture analyzer supports 16 assays including cell count and viability
  • Offline analysis: sample containers can be collected from the Cell Shuttle
  • Real-time process monitoring
  • Auto-generated electronic batch records

4x Sterile Liquid Transfer Systems (SLTS)

  • Facilitates mating of Cellares’ Consumable Cartridge and automation friendly reagent bottles (SLTDs)
  • Performs all sterile liquid transfer operations including reagent addition and sampling

4x Sterile Liquid Transfer Systems (SLTS)

  • Facilitates mating of Cellares’ Consumable Cartridge and automation friendly reagent bottles (SLTDs)
  • Performs all sterile liquid transfer operations including reagent addition and sampling

Material Handling System (MHS)

  • Automates the transfer of Consumable Cartridges (CC) and automation-friendly reagent bottles (SLTDs)
  • Transfers occur between feedthroughs, reagent vault system (RVS) and instruments (BPS and SLTS)

Material Handling System (MHS)

  • Automates the transfer of Consumable Cartridges (CC) and automation-friendly reagent bottles (SLTDs)
  • Transfers occur between feedthroughs, reagent vault system (RVS) and instruments (BPS and SLTS)

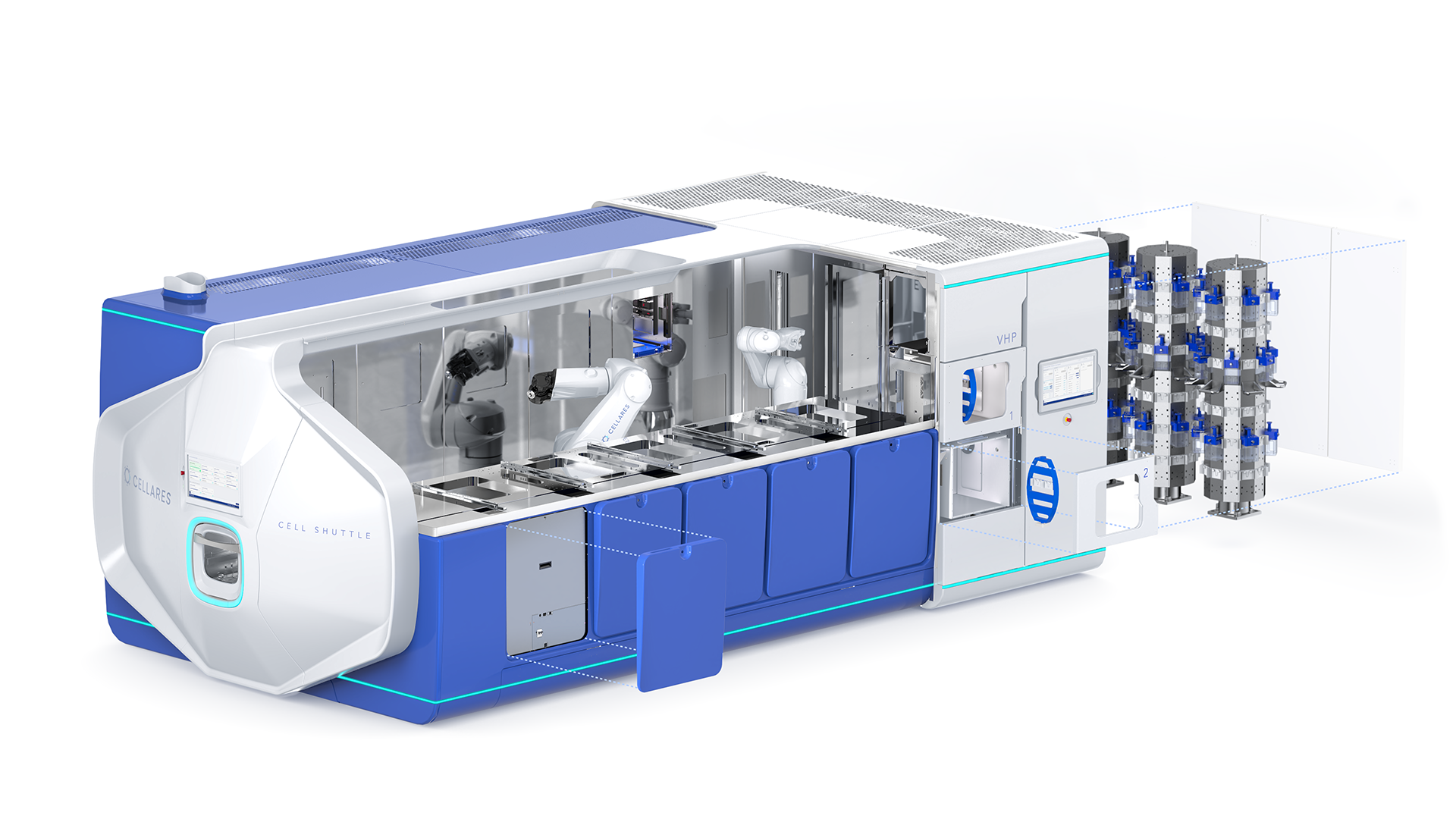

16x Bioprocessing Systems (BPS)

  • Counterflow Centrifugal Elutriation (CCE)
  • Magnetic Selection (MS)
  • Electroporation (EP)
  • Bioreactor System (BRS)

16x Bioprocessing Systems (BPS)

  • Counterflow Centrifugal Elutriation (CCE)
  • Magnetic Selection (MS)
  • Electroporation (EP)
  • Bioreactor System (BRS)

Integrated and Flexible Software Suite

  • Process Design Studio supports 90% of cell therapy modalities (auto & allo) in a single cartridge design
  • Integrated MES allows for batch scheduling across Cell Shuttle fleet
  • Real-time process monitoring solution
  • Auto-generation of electronic batch records
  • Integrates with 3rd party software systems (ERP, MES, LIMS)

Integrated and Flexible Software Suite

  • Process Design Studio supports 90% of cell therapy modalities (auto & allo) in a single cartridge design
  • Integrated MES allows for batch scheduling across Cell Shuttle fleet
  • Real-time process monitoring solution
  • Auto-generation of electronic batch records
  • Integrates with 3rd party software systems (ERP, MES, LIMS)

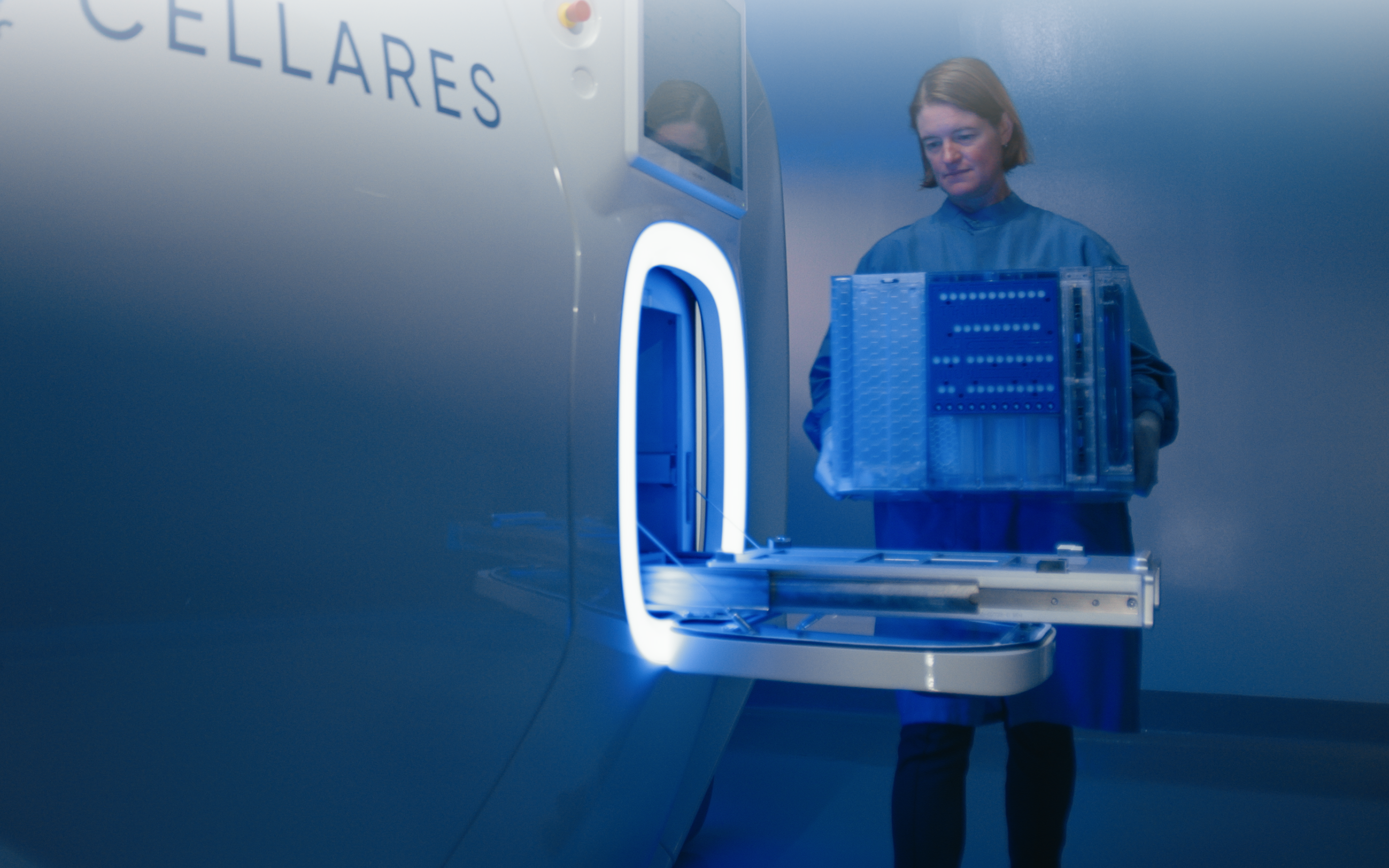

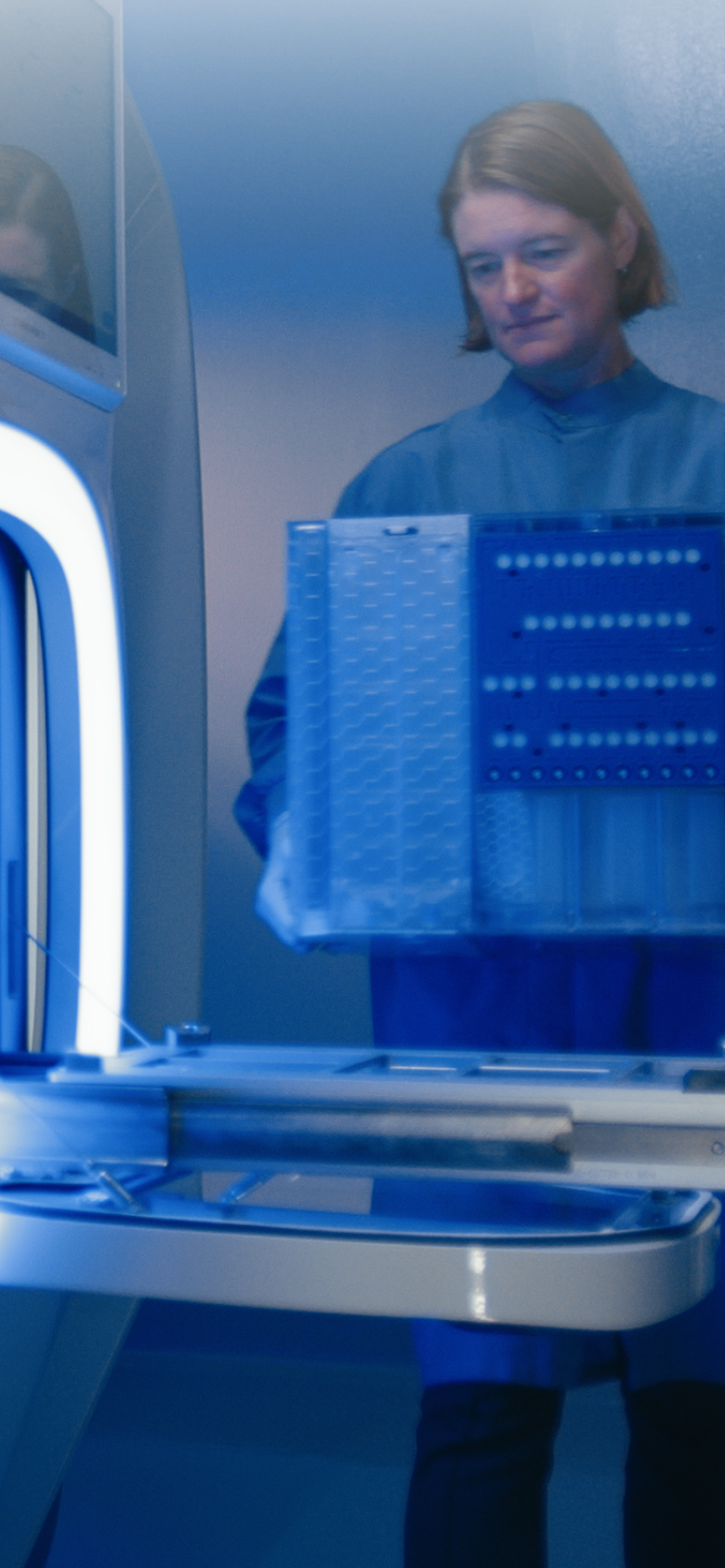

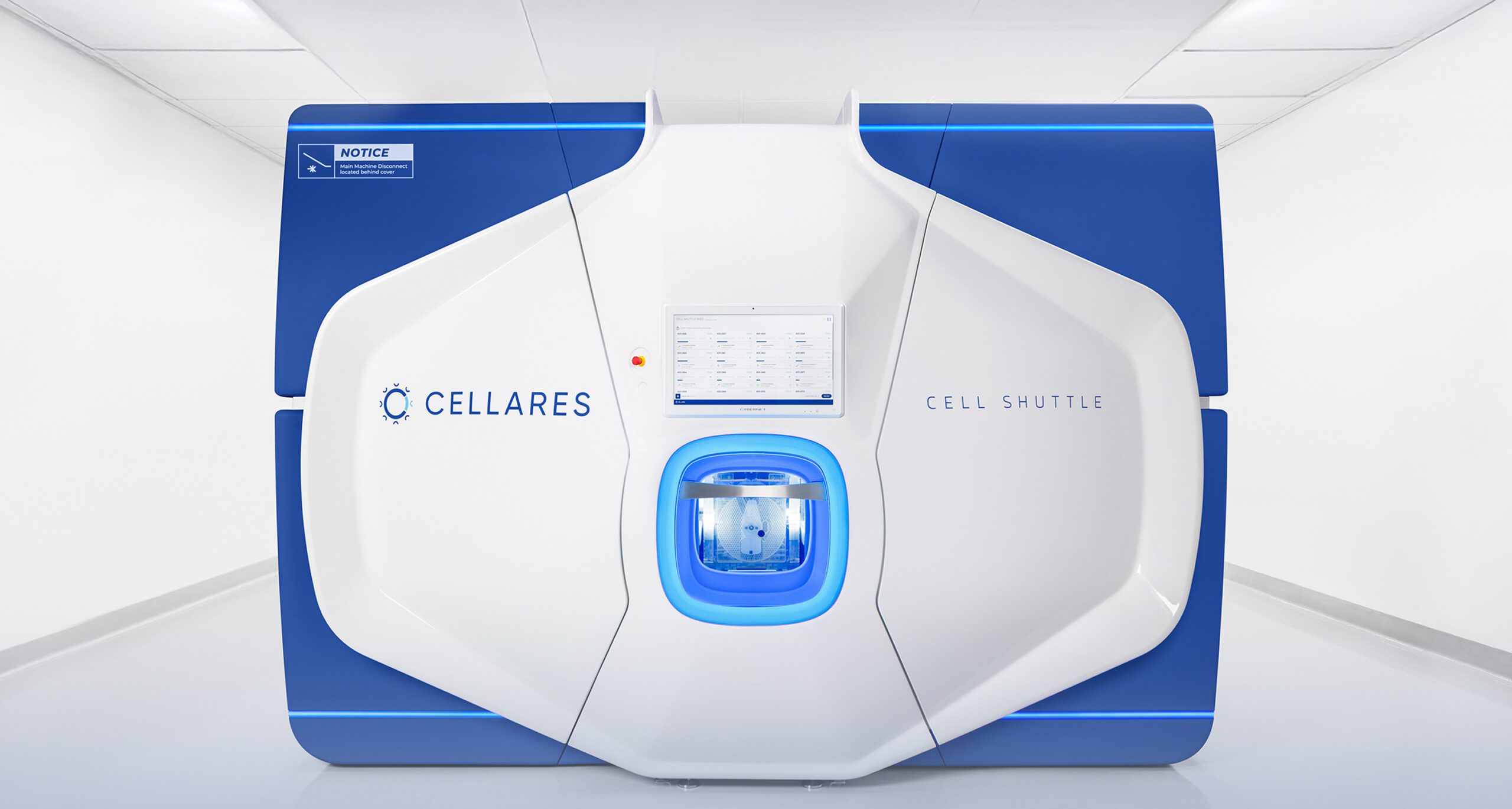

Cell Shuttle Feedthrough

  • Up to 16 cartridges can be loaded asynchronously for multi-product, concurrent manufacturing
  • Each cartridge can run a different cell therapy process as defined in the Process Design Studio
  • Each cartridge can produce a different batch/product
  • The feedthrough is the entry and exit point for all Consumable Cartridges
  • All cartridges undergo ionized hydrogen peroxide decontamination cycles

Cell Shuttle Feedthrough

  • Up to 16 cartridges can be loaded asynchronously for multi-product, concurrent manufacturing
  • Each cartridge can run a different cell therapy process as defined in the Process Design Studio
  • Each cartridge can produce a different batch/product
  • The feedthrough is the entry and exit point for all Consumable Cartridges
  • All cartridges undergo ionized hydrogen peroxide decontamination cycles

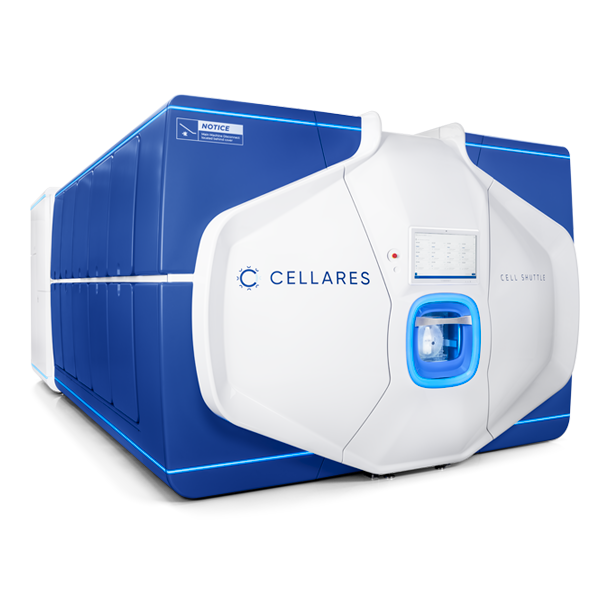

Cell Shuttle Sterility Paradigm

  • Each batch/product has a dedicated set of pre-sterilized automation-friendly reagent bottles (SLTDs) and one Consumable Cartridge. Each set which constitutes a closed system
  • The Cell Shuttle maintains an internal ISO8 cleanroom environment
  • The Cell Shuttle can be deployed in controlled not-classified environments (CNC)
  • All consumables undergo ionized hydrogen peroxide decontamination cycles as they enter the feedthrough or the reagent vault system (RVS)

Cell Shuttle Sterility Paradigm

  • Each batch/product has a dedicated set of pre-sterilized automation-friendly reagent bottles (SLTDs) and one Consumable Cartridge. Each set which constitutes a closed system
  • The Cell Shuttle maintains an internal ISO8 cleanroom environment
  • The Cell Shuttle can be deployed in controlled not-classified environments (CNC)
  • All consumables undergo ionized hydrogen peroxide decontamination cycles as they enter the feedthrough or the reagent vault system (RVS)
  • 16 batches processed in parallel
  • 75% fewer process failures
  • 90% less labor required
  • 90% less facility space required
  • 90% of modalities supported (auto & allo)
“Cellares’ revolutionary technology will be a game changer for the cell therapy industry.“
PROF. CARL JUNE, MD
CAR-T Cell Therapy Pioneer,
Cellares Advisory Board Member
INTEGRATED AUTOMATION

Truly Closed and Automated from End-To-End

Electroporators (EP)

  • Achieves world-class EP efficiency
  • All EP parameters are exposed and customizable via Process Design Suite (no black box) which enables EP optimization
  • Supports all common genetic modification technologies (CRISPR, TALEN, ZFN) and reagents
  • Ability to electroporate infinite number of cells via automated batch processing

Electroporators (EP)

  • Achieves world-class EP efficiency
  • All EP parameters are exposed and customizable via Process Design Suite (no black box) which enables EP optimization
  • Supports all common genetic modification technologies (CRISPR, TALEN, ZFN) and reagents
  • Ability to electroporate infinite number of cells via automated batch processing
Supported Unit Operations
  • TRANSFECTION

Peristaltic Pumps

  • Multiple peristaltic pumps enable multiple process steps to run in parallel on the same cartridge
  • Pump interfaces are used to facilitate sterile, metered liquid transfer between internal cartridge modules and automation friendly reagent bottles (SLTDs)

Peristaltic Pumps

  • Multiple peristaltic pumps enable multiple process steps to run in parallel on the same cartridge
  • Pump interfaces are used to facilitate sterile, metered liquid transfer between internal cartridge modules and automation friendly reagent bottles (SLTDs)
Supported Unit Operations
  • ENRICHMENT
  • BUFFER EXCHANGE
  • CONCENTRATION
  • SAMPLING
  • IN-PROCESS QC
  • SELECTION
  • ACTIVATION
  • TRANSDUCTION
  • TRANSFECTION
  • EXPANSION
  • FORMULATION

Fluidic Bus

  • Integrated valves, sensors, fluid channels, and pumps automate all internal fluid transfers
  • The Fluidic Bus enables reagent transfers from any module of the cartridge to any other module
  • The modularity of the Fluidic Bus enables support for 90% of cell therapy modalities (auto & allo) within the same cartridge design

Fluidic Bus

  • Integrated valves, sensors, fluid channels, and pumps automate all internal fluid transfers
  • The Fluidic Bus enables reagent transfers from any module of the cartridge to any other module
  • The modularity of the Fluidic Bus enables support for 90% of cell therapy modalities (auto & allo) within the same cartridge design
Supported Unit Operations
  • ENRICHMENT
  • BUFFER EXCHANGE
  • CONCENTRATION
  • SAMPLING
  • IN-PROCESS QC
  • SELECTION
  • ACTIVATION
  • TRANSDUCTION
  • TRANSFECTION
  • EXPANSION
  • FORMULATION

Reagent & Final Product Containers

  • Smart containers provide precise, real-time volume tracking
  • Integrated smart containers for starting material, reagent storage and final product formulation

Reagent & Final Product Containers

  • Smart containers provide precise, real-time volume tracking
  • Integrated smart containers for starting material, reagent storage and final product formulation
Supported Unit Operations
  • ENRICHMENT
  • BUFFER EXCHANGE
  • CONCENTRATION
  • SELECTION
  • ACTIVATION
  • TRANSDUCTION
  • TRANSFECTION
  • EXPANSION
  • FORMULATION

Bioreactor System (BRS)

  • Supports expansion of >20 billion cells
  • Perfusion-enabled stirred-tank design
  • Closed loop control and real-time monitoring of temperature (T), dissolved oxygen, (DO) and acidity (pH)

Bioreactor System (BRS)

  • Supports expansion of >20 billion cells
  • Perfusion-enabled stirred-tank design
  • Closed loop control and real-time monitoring of temperature (T), dissolved oxygen, (DO) and acidity (pH)
Supported Unit Operations
  • ACTIVATION
  • TRANSDUCTION
  • EXPANSION

Sterile Liquid Transfer Ports (SLTP)

  • Supports reagent additions, waste removal and automated sampling
  • SLTPs on the Consumable Cartridge (CC) interface with the SLTPs on the automation-friendly reagent bottles (SLTDs)
  • The Sterile Liquid Transfer System (SLTS) facilitates metered, automated, sterile liquid transfer into and out of the Consumable Cartridge

Sterile Liquid Transfer Ports (SLTP)

  • Supports reagent additions, waste removal and automated sampling
  • SLTPs on the Consumable Cartridge (CC) interface with the SLTPs on the automation-friendly reagent bottles (SLTDs)
  • The Sterile Liquid Transfer System (SLTS) facilitates metered, automated, sterile liquid transfer into and out of the Consumable Cartridge
Supported Unit Operations
  • ENRICHMENT
  • BUFFER EXCHANGE
  • CONCENTRATION
  • SAMPLING
  • IN-PROCESS QC
  • SELECTION
  • ACTIVATION
  • TRANSDUCTION
  • TRANSFECTION
  • EXPANSION
  • FORMULATION

Magnetic Cell Sorter (MS)

  • Supports magnetic selection with both microbeads and nanobeads (reagent agnostic)
  • Supports both positive and negative selection
  • Column-free design operates in batch mode to process any volume of cells

Magnetic Cell Sorter (MS)

  • Supports magnetic selection with both microbeads and nanobeads (reagent agnostic)
  • Supports both positive and negative selection
  • Column-free design operates in batch mode to process any volume of cells
Supported Unit Operations
  • SELECTION

Counterflow Centrifugal Elutriator (CCE)

  • Operates in batch mode to process any volume of cells
  • Can be used at arbitrary times in the workflow as defined in the Process Design Studio

Counterflow Centrifugal Elutriator (CCE)

  • Operates in batch mode to process any volume of cells
  • Can be used at arbitrary times in the workflow as defined in the Process Design Studio
Supported Unit Operations
  • ENRICHMENT
  • BUFFER EXCHANGE
  • CONCENTRATION
  • FORMULATION

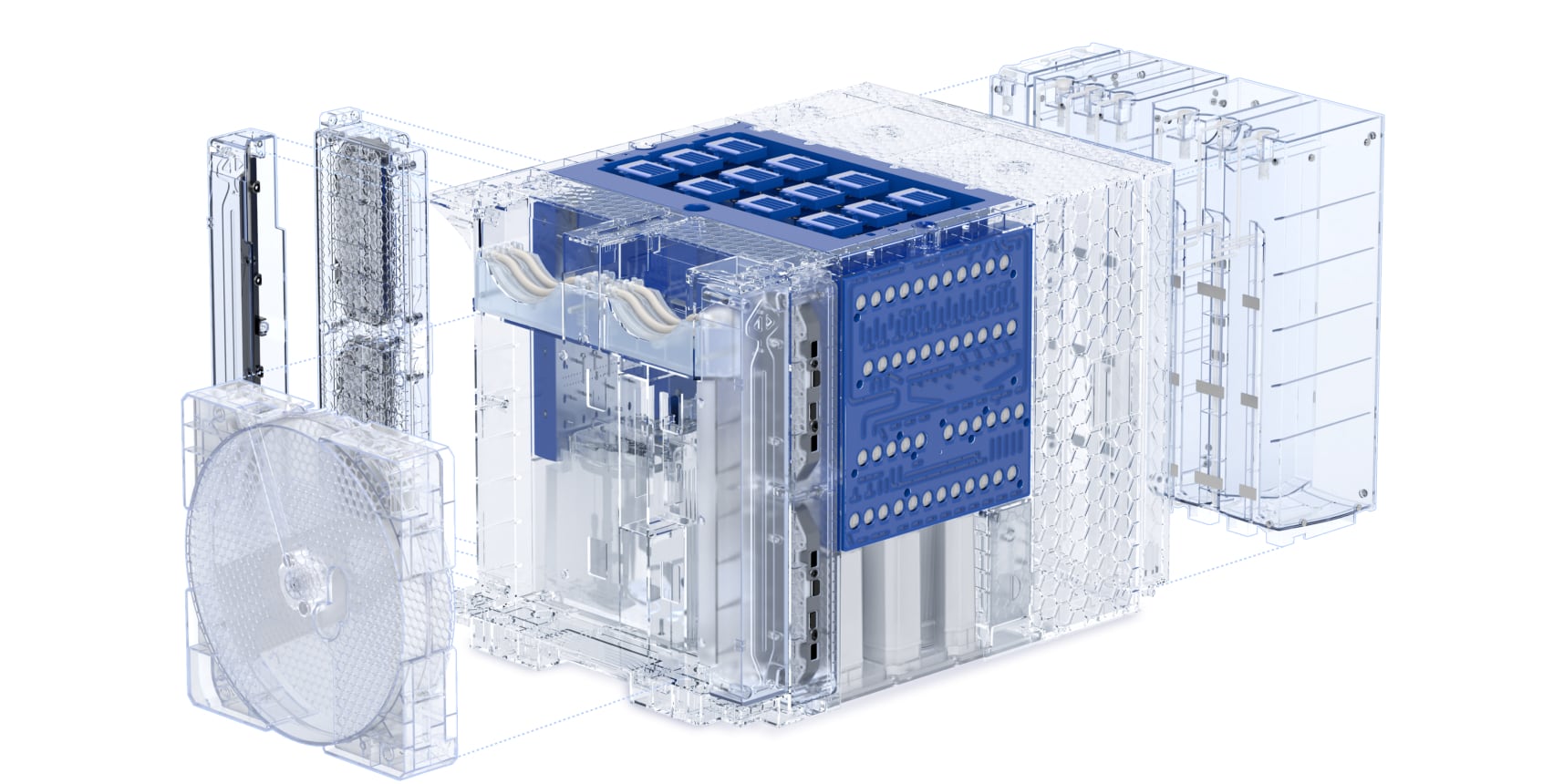

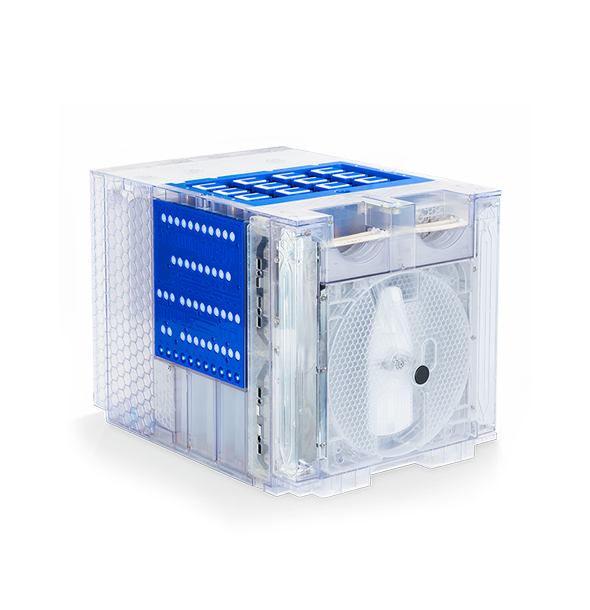

The integrated Consumable Cartridge reduces process failure rates by 75%

  • Automation eliminates opportunities for operator error
  • Closing the process eliminates opportunities for contamination

  • ENRICHMENT

  • BUFFER EXCHANGE

  • CONCENTRATION

  • SAMPLING

  • IN-PROCESS QC

  • SELECTION

  • ACTIVATION

  • TRANSDUCTION

  • TRANSFECTION

  • EXPANSION

  • FORMULATION

“The Cell Shuttle is a quantum leap forward as there is nothing similar in the cell therapy industry. The Cell Shuttle is the first real end-to-end, high-throughput manufacturing solution. It’s not truly end-to-end unless it’s integrated like the Cell Shuttle."
TimothyMoore
TIMOTHY MOORE
CTO, Allogene Therapeutics,
Cellares Advisory Board Member
SCALABILITY

Enabling Commercial Scale Manufacturing of Cell Therapies

  • Integrated Automation

    All unit operations in one Consumable Cartridge

  • High Throughput

    Up to 16 cartridges for multi-product, concurrent manufacturing

  • Scalability

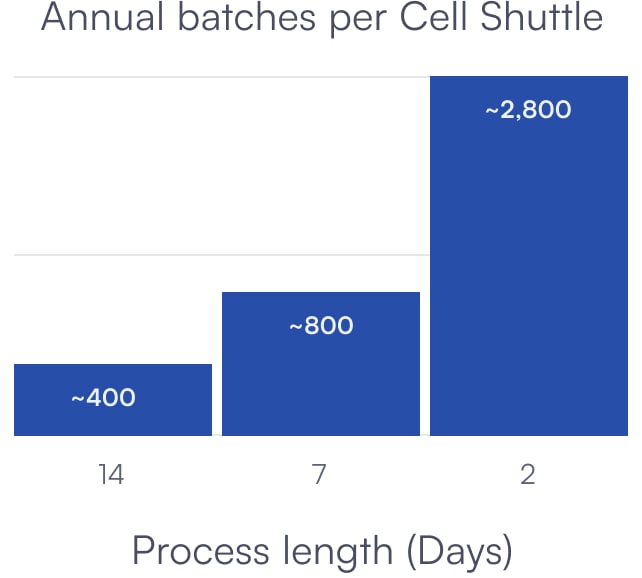

    Up to 2,800 batches per Cell Shuttle per year

Cost Savings

65% Reduction in Average Manufacturing Costs

VIEW COST-BENEFIT ANALYSIS
FLEXIBLE SOFTWARE

Integrated Software Suite Supports 90% of Cell Therapy Modalities

  • SUPPORTED APPLICATIONS

    • Autologous & Allogeneic
    • CAR-T, TCR, HSC, NK, TIL, Treg, γδ T cells

  • FLEXIBLE SOFTWARE

    • Process customization via Process Design Studio
    • Enables digital process development and DOE

  • INTEGRATED HARDWARE

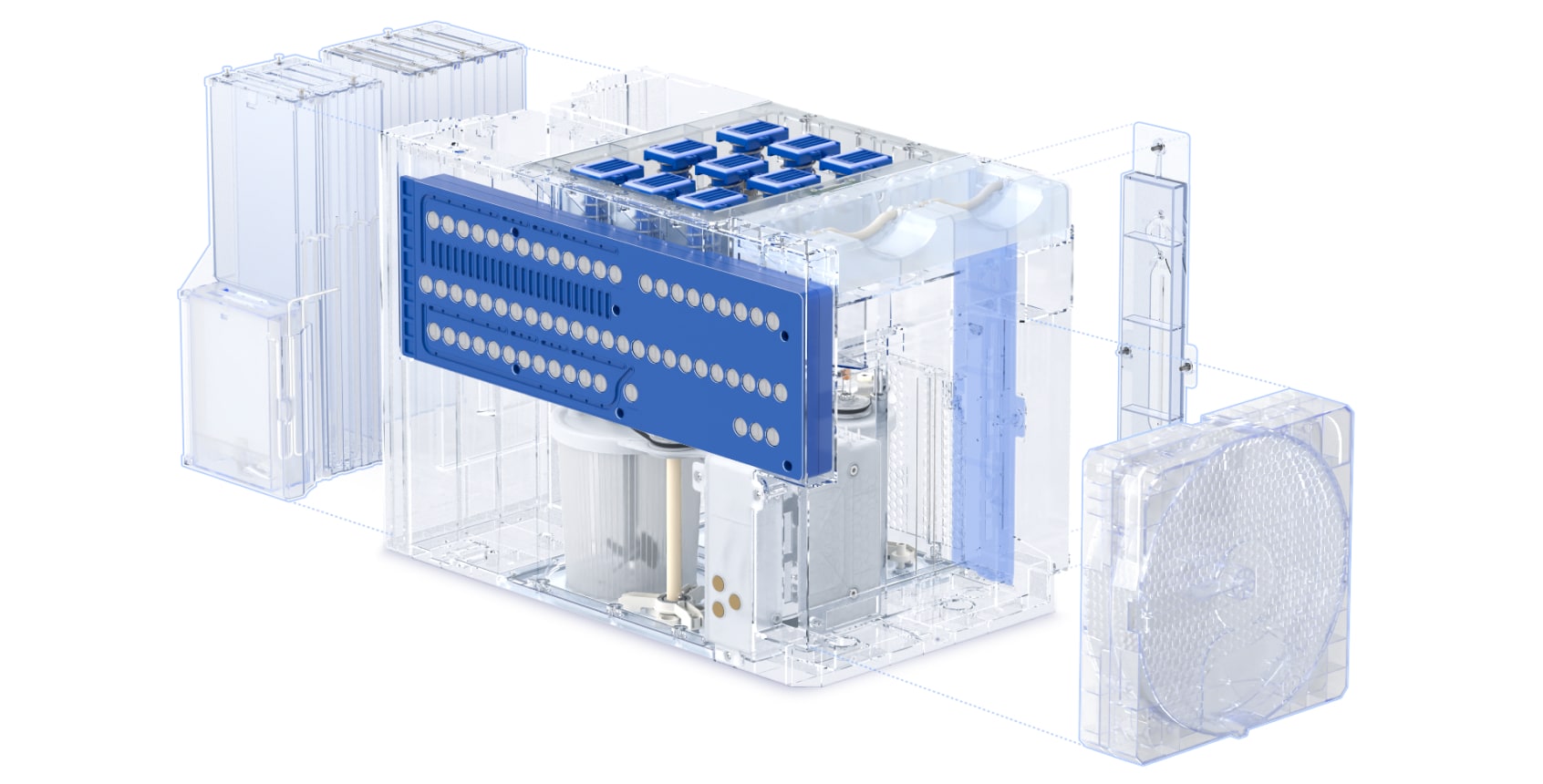

    • Every process uses the same modular Consumable Cartridge
    • No hardware customization required, which accelerates technology adoption
